BIOS stands for Basic Input/Output System, which is a firmware on the computer motherboard. In simple words: It is the simplest level of software that coordinates between Hardware and Operating System (OS – Windows/Linux).
BIOS (Basic Input/Output System) is an interesting experience in itself, being entwined with the development of laptop tech. For almost 30 years, it has been a critical device for creating laptop architectures.
Beginnings (1975)
In the early days, BIOS was originally sent for use with operating system CP/M (Control Program for Microcomputers). It was originally designed by Gary Kildall, who introduced it in 1975 within the software package deal that managed simple laptop hardware inputs and outputs.
IBM PC Era (1981 - 1990s)
With the growth of IBM PC in 1981, impulse was given to BIOS.
IBM Define Secrets: IBM kept the grant code of its computer with BIOS secret. On the other hand, exceptional groups (clone manufacturers) sooner or later most popular to increase computer architectures compatible with the IBM PC and so that they reverse engineered BIOS.
Compaq and Phoenix: Compaqs like this had BIOSes that provided equivalent hardware-level performance as the IBM BIOS with no patent infringement. This is what allowed first-rate producer hardware to run the same OS (MS-DOS).
BIOSes Then (1990s - 2000s)
Back then, BIOS was more or less a simple menu system that was text-based and did not have color nor mouse support.
During this time, changes have been delivered to BIOS for hardware detection and Plug and Play support as well as some driver assistance (specifically hard drives, CD-ROM). Yet the easiest way to use hard drives larger than 2TB was once as soon because of limits impose by means of MBR, or Master Boot Record.
UEFI Era (2007 - present)
For around thirty years, BIOS technology know-how had been spherical. Though, the old BIOS has been outstripped by modern day brief big hardware structures.
The inception of UEFI: In 2007, the Unified Extensible Firmware Interface (UEFI) was once announced. In fact, it was initially conceived by Intel and has wiped out all the drawbacks of the legacy BIOS (slow speed, no graphics support, 2TB limit).
Current Status: Every motherboard you own today runs UEFI. It is basically the successor of BIOS. BIOS manages all the basic techniques that happen on a laptop computer when it’s booted up, from the instant you hit energy to as soon because the OS is completely powered.
Main features of BIOS:
- POST (Power-On Self-Test): Just after the power on computer, BIOS test whether major hardware of pc such as RAM, Processor, Keys or Storage is working properly. It gives a notification to the user when there is an error.
- Hardware Initializing: It identifies all the pc-measurement hardware and provides them with simple tips on how to get started.
- Bootstrap Loader: After checking for the hardware it searches the available OS (Windows etc.) stored on PC and boot it up.
- Hardware Settings: Permits the client to exchange basic settings of a pc (processor speed, date and time, boot complicated drive).
Important statistics about BIOS:

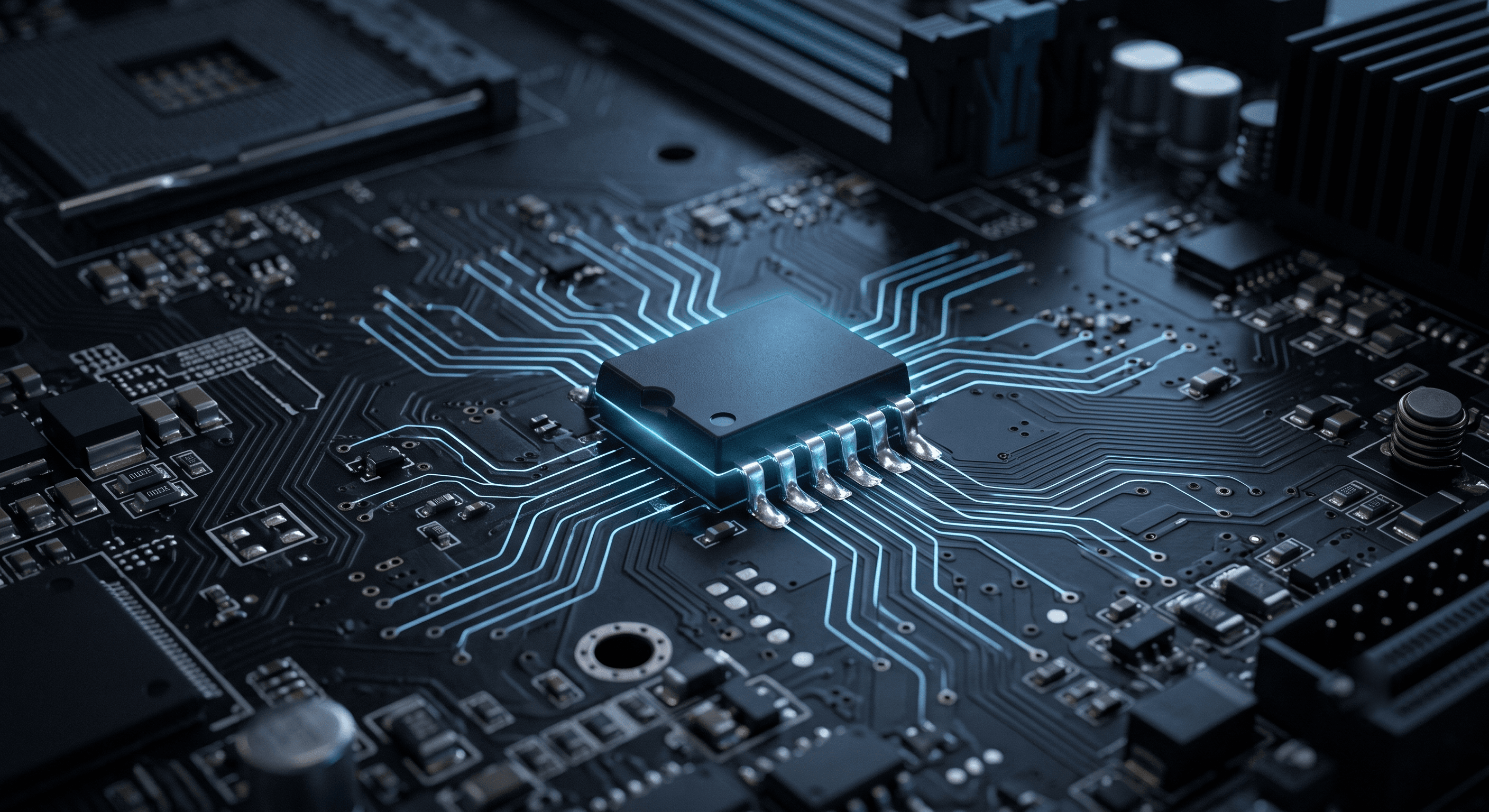

Storage On The Motherboard: This BIOS Software is stored in a specialized EEPROM or Flash Memory chip directly soldered or mounted to the motherboard. It is in non-volatile memory.
CMOS Memory & Battery: A small button battery (CR2032 CMOS Battery) on the motherboard maintains BIOS settings (date, time), even when you have turned off your laptop. When the Battery is weak, the BIOS settings will reset to the default state.
UEFI (Unified Extensible Firmware Interface): UEFI science is the next generation, evolutionary device of historical BIOS – these days most laptop structures depend on flexible and efficient UEFI opened up. This is faster than traditional BIOS, more secure (Secure Boot), and has a modern interface that you can use with the mouse.
Technical data you need to understand as a technician:
- Hyperband: Combination of random sampling and bandits algorithm—fastest, adapts on the fly.
- BIOS Flashing: Reinstall firmware software to chip in motherboard to support newer processors and fix errors. It is a very volatile process.
- AHCI Mode: A Must-Do For Regaining The Proper Speed Of SSD And SATA Based Hard Drives.
- TPM (Trusted Platform Module): The statistics safety chip that you need to run constructions like Windows 11 is dictated in the BIOS.
- XMP / DOCP: A setting done through BIOS to overclock (Frequency) your RAM speed.
BIOS is the first part of a computer. This also assists the laptop in knowing to recognize the hardware or start up its Operating System, otherwise it will not function without it.
Accessing BIOS
How to Enter BIOS or UEFI
Access again depends on the pc producer and motherboard. Here are some of the main approaches:
Method 1: Using keys during bootup
At the moment, when you observe the emblem on your screen, as quick as you press your computer's Power button one other time in numerous situations:
- Common keys: Delete, F2
- Other keys: F1, F10, F12, Esc
- Note: On some very fast bootup laptops, the laptop boots Windows so fast that you never have time to press these keys. In this case, refer to Method 2 below.
Method 2: Accessing Through Windows 10/11 (The Modern Way)
If your PC is already running, you can jump to BIOS from Windows Settings:
- Go to Settings.
- Go to Update & security (Windows 10) or System > Recovery (for Windows 11).
- Under Advanced startup, click Restart now.
- After the PC restarts, a blue menu will be displayed. There:
- Select Troubleshoot.
- Select Advanced options.
- Select UEFI Firmware Settings.
- Click the Restart button.
Keys based on manufacturer guidance:
- HP: F10 or Esc
- Dell: F2 or F12
- Lenovo: F2 or Fn + F2 (some models use the small 'Novo button' along the side)
- ASUS: F2 or Delete
- Acer: F2 or Delete
Professional Tip: Sometimes even if the keys are pressed, it can be problematic to enter BIOS when "Fast Boot" functionality is enabled on the device. Method 2 works better in these cases. Further, if you are unsure which key should be used to access the BIOS, locate your motherboard manual on Google.
The difference between BIOS and UEFI
BIOS (Legacy BIOS)
BIOS, a relic of mid-1970s technological know-how. It was originally meant to control the extremely limited hardware implementations of that time. The problem with that situation is basically its mind-bogglingly based on ‘16-bit’ processor technology. Because of this limited memory, it may also prefer to fully load a very small amount of data. For tough drives, a few historic BIOSes may even crave to determine the partition structure referred to as 'MBR' (Master Boot Record). The biggest technical disadvantage proper right here is the capability to maybe comprehend tough drives that have a most dimension of 2.2 Terabytes (TB). In addition, historic BIOS have actually been highly vulnerable to safety attacks; malicious software applications (Rootkits) can also take advantage of the early start via its defense layers and enter into a computer system at boot time.
UEFI (Unified Extensible Firmware Interface)
UEFI is a 21st-century interface meant to fulfill the technological dreams of our time. This breaks all of the historical limits with BIOS, and if UEFI can run in beyond all doubt every '32-bit' and '64-bit' modes, it makes for some advantageous utilization of huge equipment limits. It utilizes a contemporary type of partitioning known as 'GPT' (GUID PARTITION TABLE) for arduous disks. This will increase hard drive probability to an unlimited level (9.4 Zettabytes).
When you talk about safety, UEFI actually has a great security feature known as 'Secure Boot'. These assessments ensure that each strolling software program application and jogging computer has a virtual signature prior to the laptop loads. This really prevents rogue software applications from entering the computer. Furthermore, the better imaging abilities of UEFI means it may be mouse accessible and have colorful displays.
What you want to know as a technician
As an IT professional during this transition from legacy BIOS to UEFI, there are a few things you want the scoop on:
- Making them compatible: In order to run an older HDD (MBR system) on a newer motherboard, the 'CSM' (Compatibility Support Module) has to be turned on in BIOS. This helps by making the motherboard act like an historic BIOS (even possible in UEFI).
- Performance: To fully leverage the speed of modern NVMe SSDs, make sure that your SSD is booted in GPT format and UEFI mode. It is only after a few seconds that the laptop string can run with 'Fast Boot'.
- Troubleshooting: Most motherboards today come with UEFI, but in practice it's still often called 'BIOS'. Hence, it simply becomes essential to know this during the conversation with a customer.
BIOS Update/Flash
BIOS flashing refers to updating the Firmware on your motherboard with a more recent version. It has a very important impact on the stability of computer hardware and compatibility with different materials.
Reasons for updating the BIOS:
- Hardware Support: New BIOS versions are released so that contemporary motherboards have the capacity to support todays fashionable processors (CPU) models which might be newly approaching the market.
- Bug Fixes: The producer issues up-to-the-minute software program updates to patch current defects on the machine (e.g., RAM troubles, boot problems, thermal management bugs).
- More security: Safety patches are critical to preserving the system from modern dangers that could injure it.
Flashing the BIOS (Step-by-Step):
You must do this list with the utmost care. For if a power cut or error occurs during this process, then the motherboard could almost cease to function.
- Step 1: Finding out the motherboard model and current BIOS version: Make sure to find out this via
msinfo32or from the BIOS menu. Also CHECK your Motherboard True Model Title & present day BIOS version. - Step 2: Downloading from the official website: Just head to the official web page of your motherboard manufacturer (Gigabyte, ASUS, MSI and so on) and obtain the right BIOS file for your model. It will destroy the motherboard if you install an incorrect file.

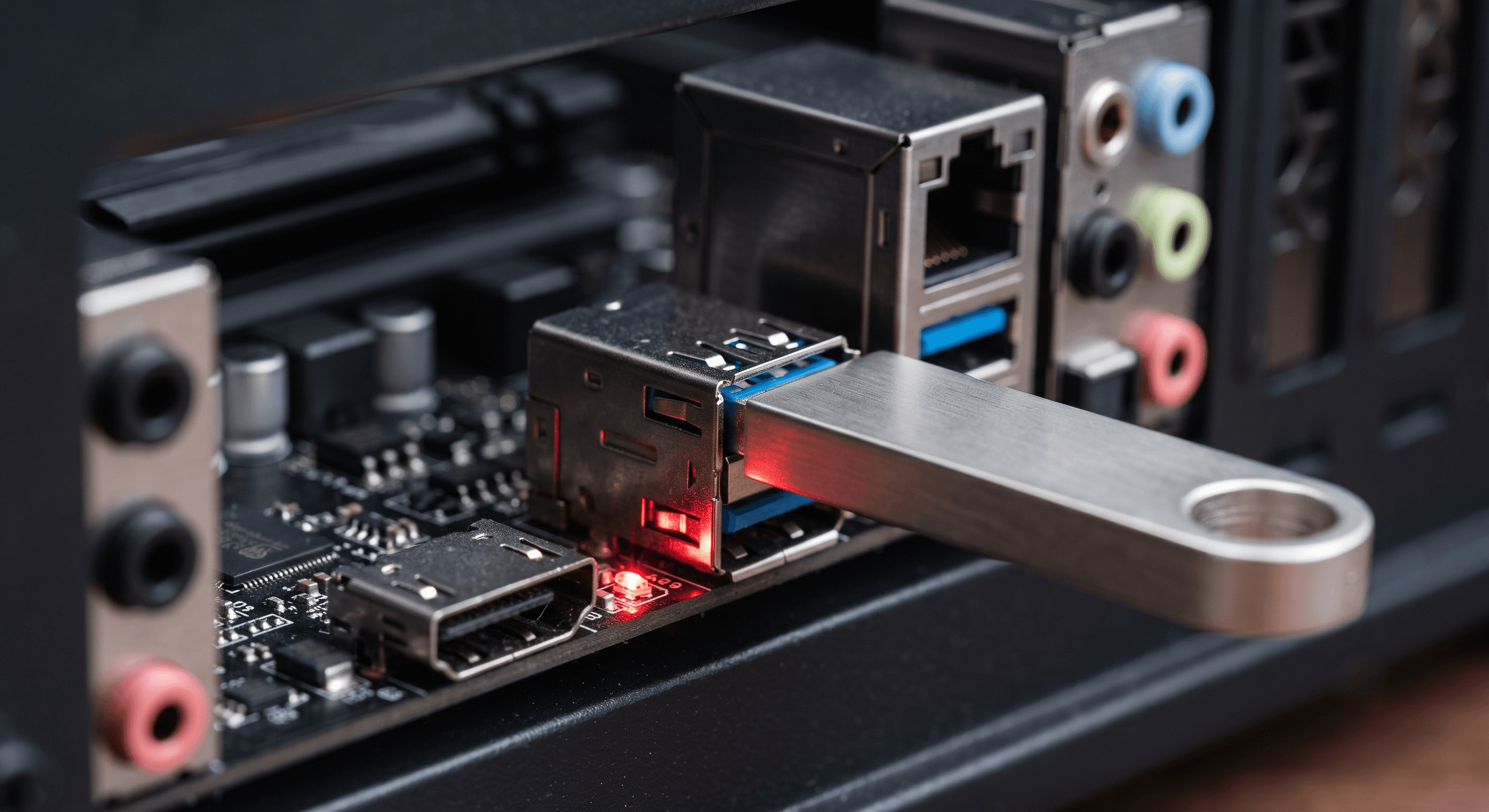

- Step 3: Preparing the USB Drive: Transfer the BIOS file you downloaded to a FAT32 formatted USB drive.
- Step 4: Updating via BIOS (Flash): Reboot the computer and hit the appropriate key to enter BIOS. Choose the utility: Flash, Q-Flash or EZ Flash. Choose the file on your USB and flash it there.
CRITICAL WARNINGS:
- Continuous electrical power supply: Do not turn off the computer or permit the electricity to be disconnected for any reason during flashing. Use a UPS if possible.
- Recovery: If somehow the flashing does not succeed, then that motherboard has to be wiped out and the chip needs re-programming. There's a feature called "BIOS Flashback" on most motherboards today; it allows you to flash the BIOS without having a CPU or RAM installed inside.
- Note: If you are not experiencing any current-day troubles with your computer and do not have new hardware installed, updating the BIOS is usually unnecessary. Follow the simple rule: "If it works, don't change it".
